Oil Chiller
General Description
Oil Cooling Chillers designed to provide precise and accurate temperature control of industrial lubrication oils and hydraulic cutting fluids for a wide variety of industrial applications, with cooling capacities from 0.98kW to 21kW.
Extremely compact and easy to use, Fidem Chiller is designed for safe and reliable operation in the most varied working conditions, providing precise and accurate control of hydraulic oil/cutting fluid temperature.
This Oil Chiller can be widely used for some typical industrial applications like Machine tools, Cutting machines, Plastic injection moulding machines, Other processes with hydraulic oil circuits
Advantages:
Hydraulic circuit composed of stainless steel components and stainless steel plate evaporator to prevent oil contamination.
Completely configurable with many options and kits to fit the needs of a wide variety of industrial applications Maximum ambient
temperature up to 48° C on standard units, tropicalization up to 53° C Compact design provides a space saving and easy to install solution
High reliability and low energy consumption
Oil Chiller

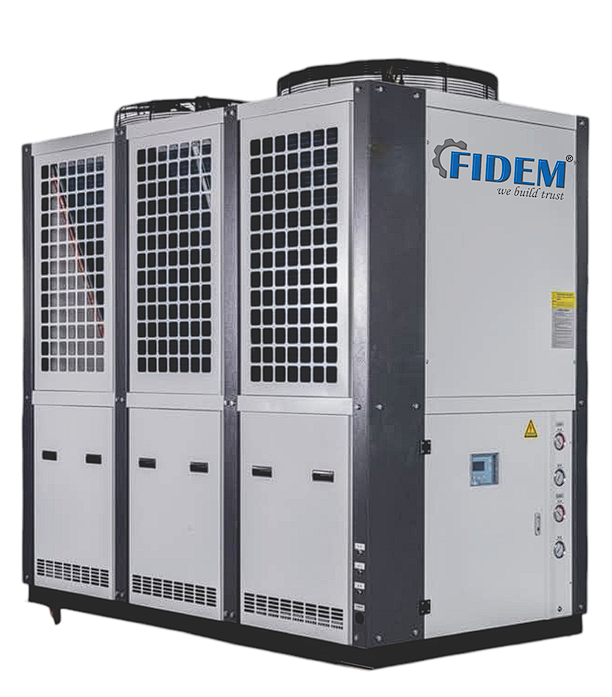

FIDEM Industrial Oil Chiller – Precision Cooling for Spindle & Machine Oils
FIDEM Industrial Oil Chillers are high-performance refrigeration units specifically engineered to control the temperature of spindle and hydraulic oils in CNC and precision machinery. Operating on the vapor compression refrigeration cycle, these chillers continuously circulate oil in a closed or open loop, efficiently extracting excess heat to maintain a stable working temperature—resulting in improved machining accuracy, surface finish, and tool life.
Unlike water-cooled chillers, FIDEM oil chillers use air-cooled condensers, eliminating the need for a cooling tower and simplifying installation and maintenance.
Types of Industrial Oil Chillers
- 1. Box-Type Oil Chiller – Compact and self-contained, ideal for CNC and EDM machines.
- 2. Immersion-Type Oil Chiller – Chiller coil directly immersed in oil tank.
- 3. Circulating Oil Chiller – For large volume oil cooling, with external circulation system.
- 4. Customized Solutions – Tailored for non-standard installations or high ambient applications.
Key Features & Advantages
- Panasonic / Danfoss Scroll Compressor – Energy-efficient and reliable
- Eco-Friendly Refrigerants – R410A / R407C (non-ozone depleting)
- Built-in SS304 Oil Tank – For stable circulation and temperature
- Integrated Oil Pump – Ensures continuous flow through system
- PHE or Shell & Tube Evaporator – Durable and high thermal efficiency
- Digital Temperature Controller – Microprocessor-based precision control
- Safety Protection – High/low pressure switch, temperature alarm, and flow switches
- Compact Design – Easy to install beside CNC or machining centers
How Does an Industrial Oil Chiller Work?
- 1. Oil Circulation – Warm spindle or hydraulic oil is drawn from the machine.
- 2. Heat Exchange – The oil passes through an evaporator (PHE/Shell & Tube), where heat is transferred to the refrigerant.
- 3. Cooling Process – The refrigerant absorbs the oil's heat and moves it to the condenser where it is released to the ambient air via fans.
- 4. Cooled Oil Return – The cooled oil is then pumped back into the machine, keeping the spindle or system within ideal temperature limits.
Main Components of Industrial Oil Chiller
- Scroll Compressor (Panasonic / Danfoss)
- Air-Cooled Condenser with Axial Fans
- Stainless Steel Oil Tank & Oil Pump
- PHE / Shell & Tube Type Evaporator
- Digital Microprocessor Temperature Controller
- Electrical Control Panel with MCBs and Overload Protection
- Refrigerant Circuit with R410A / R407C
- High/Low Pressure Switch, Flow Switch, Level Switch (Optional)
Industrial Oils Cooled by FIDEM Oil Chiller
- Spindle Oil
- Hydraulic Oil
- Gear Oil
- Lubrication Oil
- Cutting & EDM Oil
- Transmission Oil
- Honing and Broaching Oil
Applications of Industrial Oil Chillers
- CNC Machine Tools
- Machining Centers
- Turning, Milling & Grinding Machines
- EDM / Wirecut Machines
- Honing & Broaching Machines
- Gear Hobbing & Drilling Machines
- Hydraulic Power Packs
- Plastic Injection Machines
Why Choose FIDEM Chillers?
- 15+ Years of Experience in Industrial Cooling
- Made in India – Custom Engineered for Indian Conditions
- Best-in-Class Warranty & Service Support
- ISO-Compliant Quality Assurance
- Strong R&D for Custom Solutions
- Quick Delivery & Spare Parts Availability
FIDEM FMOIL Series – Technical Specifications
| Model | Cooling Capacity (Kcal/h) | Cooling Capacity (kW) | Compressor Power (kW) | Total Power Input (kW) | Oil Pump Power (kW) | Oil Flow (m³/h) | Oil Tank (L) | Dimensions (mm) | Weight (kg) | Pipe Connection |
|---|---|---|---|---|---|---|---|---|---|---|
| FMOIL-6 | 843 / 1011 | 0.98 / 1.2 | 0.40 | 0.64 | 0.19 | 0.24 | 8 | 460 × 325 × 680 | 38 | 1/4″ |
| FMOIL-12 | 1419 / 1703 | 1.65 / 2 | 0.55 | 0.84 | 0.19 | 0.33 | 18 | 460 × 325 × 920 | 55 | 1/2″ |
| FMOIL-18 | 1703 / 2043 | 1.98 / 2.4 | 0.68 | 1.00 | 0.19 | 0.33 | 18 | 460 × 325 × 1050 | 75 | 1/2″ |
| FMOIL-25 | 2451 / 2941 | 2.85 / 3.4 | 0.89 | 1.39 | 0.37 | 1.2 | 22 | 575 × 430 × 1200 | 92 | 3/4″ |
| FMOIL-32 | 3139 / 3767 | 3.65 / 4.4 | 1.20 | 1.72 | 0.37 | 1.5 | 22 | 620 × 600 × 1280 | 95 | 3/4″ |
| FMOIL-2R | 4859 / 5831 | 5.65 / 6.8 | 1.75 | 2.65 | 0.75 | 2.4 | 33 | 620 × 635 × 1420 | 145 | 3/4″ |
| FMOIL-3R | 7568 / 9082 | 8.8 / 10.6 | 2.70 | 3.68 | 0.75 | 2.4 | 38 | 850 × 800 × 1450 | 165 | 1″ |
| FMOIL-4R | 9890 / 11868 | 11.5 / 13.8 | 3.50 | 5.93 | 2.20 | 3.9 | 95 | 950 × 800 × 1620 | 235 | 1″ |
| FMOIL-5R | 12470 / 14964 | 14.5 / 17.4 | 4.55 | 7.20 | 2.20 | 4.5 | 95 | 950 × 800 × 1620 | 243 | 1-1/4″ |
| FMOIL-6R | 14448 / 17338 | 16.8 / 20.2 | 5.25 | 9.40 | 3.75 | 5.4 | 95 | 950 × 800 × 1620 | 276 | 1-1/4″ |
Shipping & Installation
- Packaging: Export-grade wooden box or metal skid
- Shipping: By road, sea, or air depending on destination
- Installation: Plug & play design, just connect power and oil piping
Notes
- Design Conditions: • Oil Inlet/Outlet Temp: 12°C / 7°C • Ambient Air Temp: 30°C / 38°C
- Refrigerants: R22 / R407C / R134a / R404A / R410A
- Compressor Type: Hermetic Rotary / Scroll
- Evaporator: SS/Copper Coil in Tank, Shell & Tube or Plate Heat Exchanger
- Condenser: Finned Copper Tube with Low Noise External Fan
- Oil Viscosity Range: 4–300 CST
- Protection: Overload, HP/LP, Phase Fail, Temp, Freeze, Exhaust Overheat
