Nanofiltration (NF) Systems
General Discription
Advanced Water Purification Beyond RO
Aquatech Plus offers cutting-edge Industrial Nano filtration (NF) Systems that go beyond traditional reverse osmosis. NF systems are ideal for industries seeking efficient removal of hardness, foul taste, odor, pesticides, and organic compounds, while retaining beneficial minerals.
Key Advantages:
- ✅ Lower Water & Energy Consumption than RO
- ✅ Superior Hardness & Bivalent Ion Removal (e.g., calcium, magnesium, uranium, radium)
- ✅ Less Maintenance & Fouling RO or softeners
- ✅ Selective Mineral Retention with high contaminant rejection
- ✅ Efficient Filtration of Microorganisms & Organics
Designed using advanced nanotechnology and 3D process modeling, our NF systems ensure custom-built performance and reliability for high TDS water treatment across industries.

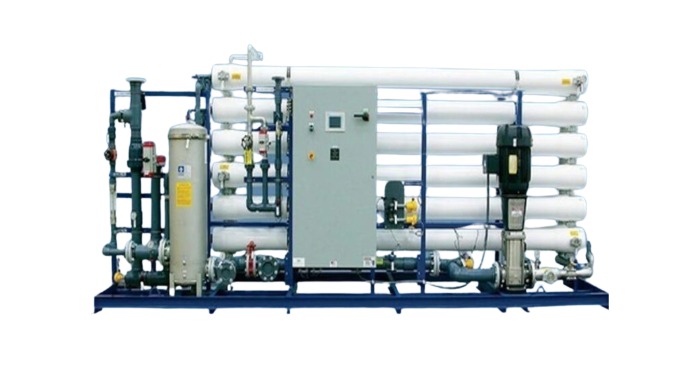

Aquatech Plus Nano filtration (APNF) Systems
Model Number | GPD | m³/day | m³/hr | Membrane Qty(4″/8″/Total) | Motor Rating(hp) | Weight(lbs) | Dimensions (L” x W” x H”) |
APNF Commercial (4″) Series | |||||||
APNF-1 | 11,700 | 44 | 1.83 | 9 x 4″ | 3 | 750 | 141 x 35 x 66 |
APNF-2 | 13,500 | 51 | 2.13 | 10 x 4″ | 3 | 850 | 109 x 35 x 66 |
APNF-3 | 19,800 | 75 | 3.13 | 15 x 4″ | 3 | 900 | 142 x 35 x 66 |
APNF-4 | 28,800 | 109 | 4.54 | 21 x 4″ | 5 | 1,025 | 144 x 35 x 64 |
APNF Industrial (8″) Series | |||||||
APNF-4 | 25,200 | 95 | 3.96 | 4 x 8″ | 5 | 2,300 | 190 x 43 x 61 |
APNF-5 | 32,400 | 123 | 5.13 | 5 x 8″ | 5 | 2,350 | 230 x 43 x 61 |
APNF-6 | 38,700 | 146 | 6.08 | 6 x 8″ | 5 | 2,400 | 270 x 43 x 61 |
APNF-8 | 51,300 | 194 | 8.08 | 8 x 8″ | 5 | 2,500 | 190 x 43 x 63 |
APNF-10 | 64,800 | 245 | 10.21 | 10 x 8″ | 10 | 2,600 | 230 x 43 x 65 |
APNF-12 | 78,300 | 296 | 12.33 | 12 x 8″ | 10 | 2,700 | 190 x 43 x 75 |
APNF-15 | 97,200 | 368 | 15.33 | 15 x 8″ | 10 | 3,200 | 230 x 43 x 75 |
APNF-18 | 117,000 | 443 | 18.46 | 18 x 8″ | 15 | 3,500 | 270 x 53 x 77 |
APNF-20 | 129,600 | 491 | 20.46 | 20 x 8″ | 15 | 4,200 | 230 x 53 x 87 |
APNF-24 | 155,700 | 589 | 24.54 | 24 x 8″ | 15 | 4,550 | 270 x 53 x 88 |
APNF- High Capacity Industrial (8″ or more) Series | |||||||
APNF-30 | 190,000 | 719 | 29.96 | 28 | 25 | 4,500 | 350 x 72 x 80 |
APNF-34 | 213,750 | 809 | 33.71 | 30 | 25 | 4,500 | 300 x 72 x 80 |
APNF-40 | 256,500 | 971 | 40.46 | 36 | 25 | 4,900 | 300 x 72 x 80 |
APNF-48 | 304,000 | 1,151 | 47.96 | 42 | 30 | 5,200 | 300 x 72 x 90 |
APNF-54 | 342,000 | 1,294 | 53.92 | 48 | 30 | 5,750 | 300 x 72 x 90 |
APNF-62 | 389,500 | 1,474 | 61.42 | 54 | 40 | 6,250 | 300 x 72 x 90 |
APNF-68 | 427,500 | 1,618 | 67.42 | 60 | 40 | 7,500 | 300 x 72 x 90 |
APNF-75 | 475,000 | 1,798 | 74.92 | 66 | 50 | 8,500 | 300 x 72 x 80 |
APNF-82 | 522,500 | 1,978 | 82.42 | 77 | 50 | 8,750 | 350 x 72 x 90 |
APNF-90 | 570,000 | 2,157 | 89.88 | 91 | 60 | 9,250 | 350 x 84 x 92 |
APNF-105 | 665,000 | 2,517 | 104.88 | 98 | 60 | 9,650 | 350 x 84 x 94 |
APNF-120 | 760,000 | 2,877 | 119.88 | 112 | 75 | 10,200 | 350 x 84 x 96 |
APNF-135 | 855,000 | 3,236 | 134.83 | 126 | 75 | 10,650 | 350 x 84 x 98 |
Operational Specifications
- Maximum feed water temperature: 42°C
- Feed water inlet pressure: 20–50 psi
- System operating pressure: 80–125 psi
- pH tolerance: 3 to 11
- Feed TDS range: 0–1,000 ppm (Optional upgrade available for higher TDS)
- Maximum iron: ≤ 0.05 ppm (Pre-treatment recommended)
- Maximum silica: 60 ppm @ 60% recovery
- H₂S & turbidity must be removed prior to NF
- Hardness > 1 GPG requires antiscalant dosing
- Recovery must be adjusted appropriately for high TDS or scaling-prone waters
Standard Features
- Rugged powder-coated carbon steel frame
- High-efficiency 8” TFC spiral wound membranes
- Stainless steel multistage pump with TEFC motor
- Durable FRP membrane housings
- 5-micron cartridge pre-filter for membrane protection
- PLC-based control panel with automated sequences
- Liquid-filled pressure gauges and safety switches
- Permeate conductivity monitoring
- Flow meters for permeate and concentrate streams
460V / 3Ph / 60Hz electrical compatibility
Available Customization Options
- Remote monitoring and control interface
- Feed water conductivity monitoring
- Feed/Permeate blending system
- Membrane cleaning skid
- Automatic system flushing (hourly or programmable)
- Voltage options: 220V / 380–415V / 50 or 60 Hz
- Level-based tank controls (product water tank)
- Feed pH & ORP controllers with integrated sensors
- Totalizing flow meters
- Dosing systems: antiscalant, pH correction, chlorine/sodium bisulfite
- Pretreatment options: sand filters, iron filters, water softeners
- UV sterilization & post-NF polishing
- Containerized systems for plug-and-play setup
- Export-grade packaging for overseas projects
Applications of Aquatech Plus NF Systems
- Food & Beverage – ingredient water, concentration, desalting
- Pharmaceuticals & Healthcare – ultrapure process water
- Textiles & Dyeing – color and hardness removal
- Chemical Manufacturing – process stream purification
- Mining & Power – silica and sulfate control
- Municipal & Rural Water – high hardness and TDS reduction
- Water Reuse & ZLD Systems – NF as pre-RO polishing step
- Bottled Water & Beverage Plants – consistent taste and mineral control
Aquatech Plus brings advanced membrane-based treatment solutions tailored for industrial efficiency, longevity, and compliance with global standards. Let us help you design the perfect NF system for your process.
