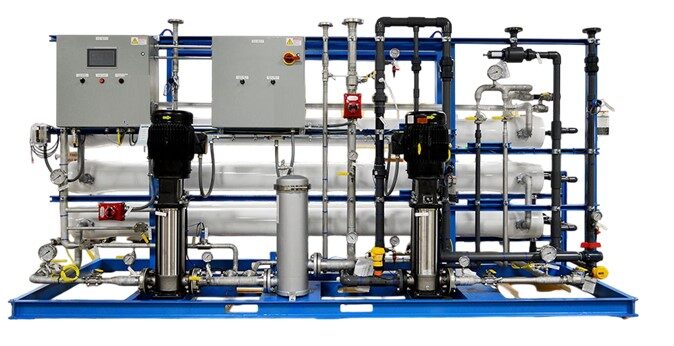

Double Pass Reverse Osmosis (RO) System

Overview

At Aqutech Plus Private Limited, we specialize in cutting-edge water treatment solutions. Our Double Pass Reverse Osmosis System is designed to meet the highest standards of purity, reliability, and efficiency. This advanced system ensures ultra-low conductivity and reduced TOC levels, ideal for industries where water quality is critical.

The second pass RO unit treats the permeate of the first pass to ensure consistently ultra-pure water, especially for pharmaceutical, power, electronics, and high-end manAPUFacturing applications.

✅ Technical Specification Table

Parameter

Specification

Feed Water TDS

Up to 2,500 ppm (custom design up to 5,000 ppm)

Permeate Conductivity

< 5 µS/cm (standard), < 1 µS/cm (ultra-pure option)

Flow Capacity

1 m³/hr to 50 m³/hr (scalable modules)

Recovery Rate

60–80% (depends on feed water and pre-treatment)

TOC Reduction

Up to 95%

Membrane Type

8″ Spiral Wound TFC, High Rejection (DOW / Toray / LG)

Membrane Housings

FRP / SS316 (as per application)

Pump Type

High-pressure SS316 Multistage Pumps (Grundfos / CRI/CNP)

Piping Material

SS316 /SS304/ UPVC / CPVC / HDPE (as per requirement)

Frame & Skid

Powder-coated MS / SS304 / SS316

Automation

PLC/HMI with optional SCADA + Remote Monitoring

Electricals

Star-Delta / VFD Panel, 3 Phase, 50 Hz /60Hz

Pre-Treatment Integration

Optional: Sand, Carbon, Softener or APUF

Cleaning System (CIP)

Manual / Auto with SS tank & dosing system

✅ Why Choose Aqutech Plus Private Limited?

✅ Proven Expertise: Decades of combined industry experience in RO/DM/NF/APUF systems.

✅ Tailored Engineering: Each system is designed for your feed water quality, capacity, and space.

✅ Trusted Components: Genuine membranes (DOW, Toray), pumps (Grundfos, CRI/CNP), and instruments.

✅ In-House Fabrication: ManAPUFactured in India with ISO-compliant procedures.

✅ Post-Sales Excellence: Nationwide service support, AMCs, and preventive maintenance.

✅ Compliance Ready: Fully compliant with GMP, WHO, IS:10500, USP, and NABL standards.

✅ High Customer Retention: Repeat clients across pharma, chemical, and industrial sectors.

✅ Export Ready Systems: Compliant with international standards for Africa, Middle East, SEA.

✅ Robust Standard Features

  • Double stage purification ensures ultra-low conductivity water
  • SS316 high-pressure multistage centrifugal pumps
  • Fully skid-mounted plug & play system
  • Inline conductivity & pressure gauges
  • Automated flushing, interlocks, and safety protection
  • Online monitoring with alarm indications
  • SS304 frame with industrial-grade finish
  • Low energy consumption and high membrane life
  • Designed for 24×7 continuous duty

✅ Available Upgrades & Options

  • SCADA + IIoT Enabled Panel (Cloud-based monitoring)
  • Auto Membrane Cleaning (CIP) System
  • Hot Water Sanitizable Membranes (for pharma)
  • Integrated UV or Ozone Disinfection
  • Energy Recovery System for Second Pass
  • Feed Water Blending System for mineral adjustment
  • TOC/ORP/SDI Monitoring Instruments
  • Custom Skid Footprint for OEM/Skid Users

✅ Industries & Applications

Our systems are trusted in highly demanding sectors:

💊 Pharmaceuticals (USFDA / GMP / WHO Plants)

⚙ Electronics and Semiconductor Fabrication

🔬 Laboratory & Research Institutions

🔋 Battery & Specialty Chemical ManAPUFacturing

🚰 Bottled Water & Beverage Industry

⚡ Power Plants & Boiler Feed Applications

Cosmetics & Personal Care ManAPUFacturing

☀ Solar Panel Cleaning (low TDS water)

CIP Water for Food & Dairy Plants

💬
