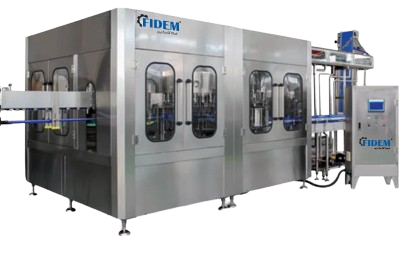

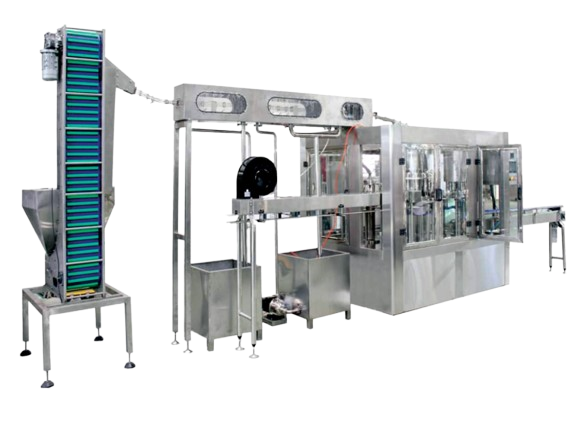

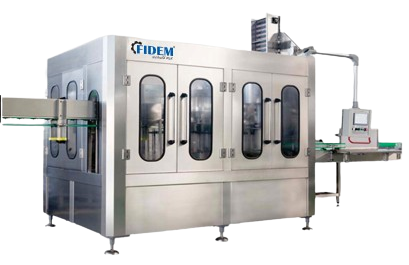

Automatic Water Filling Machine washing filling capping 3-In-1
Product Application
The machine is mainly used for washing, filling sealing Non-Aerated carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on, The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.
Capability Character
It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
| Model | FM14-12-4 | FM16-16-5 | FM18-18-6 | FM24-24-8 | FM32-32-10 | FM40-40-12 | FM50-50-12 |
|---|---|---|---|---|---|---|---|
| Capacity(500/ml/bo le/h) | 3000-4000 | 4000~6000 | 6000~8000 | 8000-12000 | 13000-15000 | 16000-18000 | 20000-24000 |
| Suitable bo le shape | PET circular or square | ||||||
| Bo le diameter(mm) | Φ50-Φ115 | ||||||
| Bo le height(mm) | 160-320 | ||||||
| Compressed air pressure(MPa) | 0.3-0.7 | ||||||
| Washing medium | asep c water | ||||||
| Washing water's pressure(MPa) | >0.06Mpa ≤0.2Mpa | ||||||
| Total Power (KW) | 4.4 | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
| Overall dimensions(mm) | 2500x1880x2300 | 2600x1900x2300 | 2800x2150x2300 | 3100x2450x2300 | 3880x2800x2500 | 4100x3000x2500 | 4500x3300x2350 |
| Weight (kg) | 3200 | 4000 | 4500 | 6500 | 7500 | 8500 | 9000 |
💬
